ANM 77 Series - Duct Burner

ANM77 Series Burner is patented product of Anderson Thermal Solutions, duct burner, for process air with low oxygen content, and recirculation air supplemantary heating

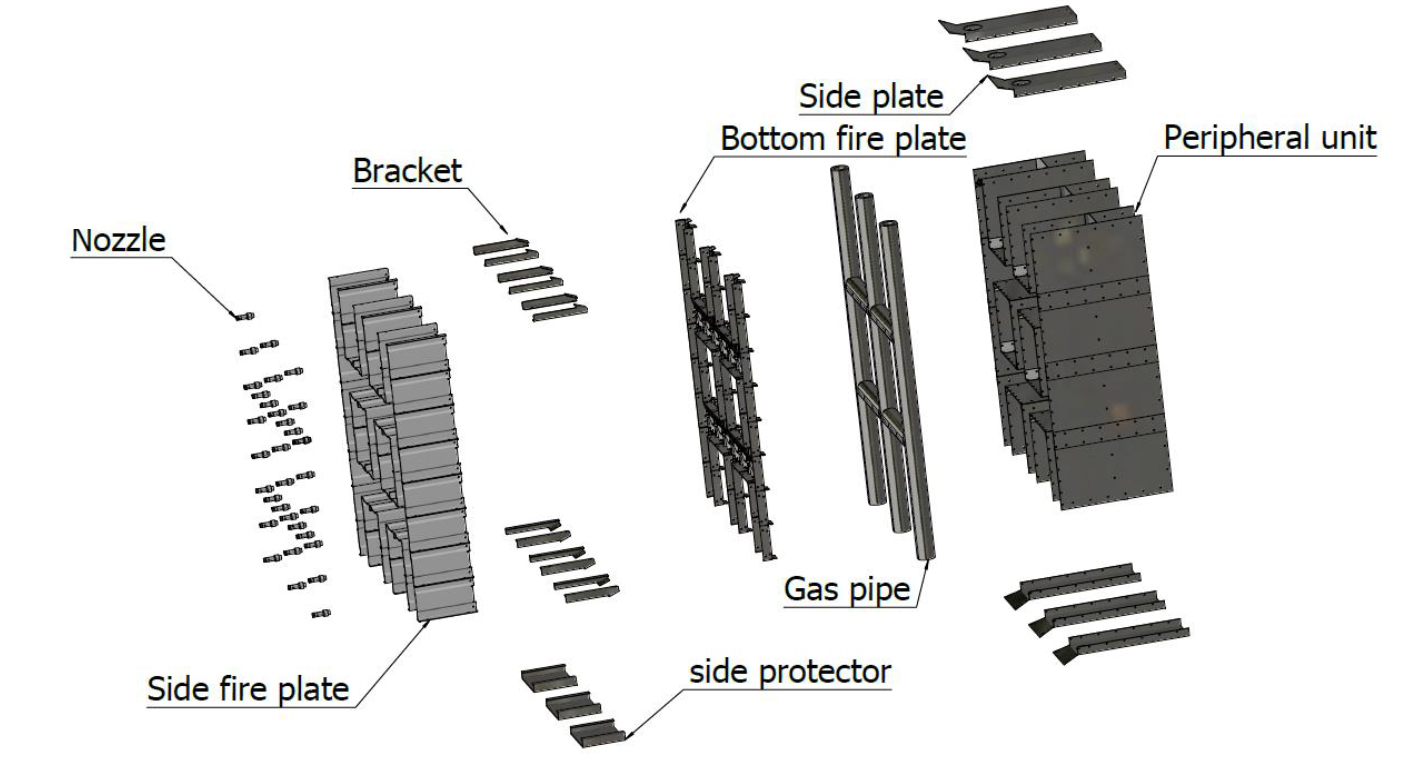

All stainless steel design. Fuel is delivered to the center from gas inlet flange, and the side plate distributes the fresh air to the center. The swirl flame generate strong mixing effect with process air

Modular design

Download

Product Features:

Duct burner for air heating
• Fuel type: natural gas
• Combustion air: fresh air
• Capacity range: modular design, customized
• Maximum temperature: upstream 500℃, downstream 850℃
• Turndown ratio: 20:1
• Low NOx emission

This series burner is duct heating burner, large amount of air passes through the burner and be heated, enters into the drying room. Both packaged blower and remote blower are available

Typical application:

• Gypsum board drying
• HRSG
• Other supplementary heating industry

Technical Data:

Maximum output: 920KW/m, or 110KW per module
Minimum output: 23KW/m, or 2.75KW per module
Flame length: 1000mm maximum capacity
Maximum upsteam temperature: 500℃
Maximum downsteam temperature: 850℃
